Connection Profile DPS 550/553

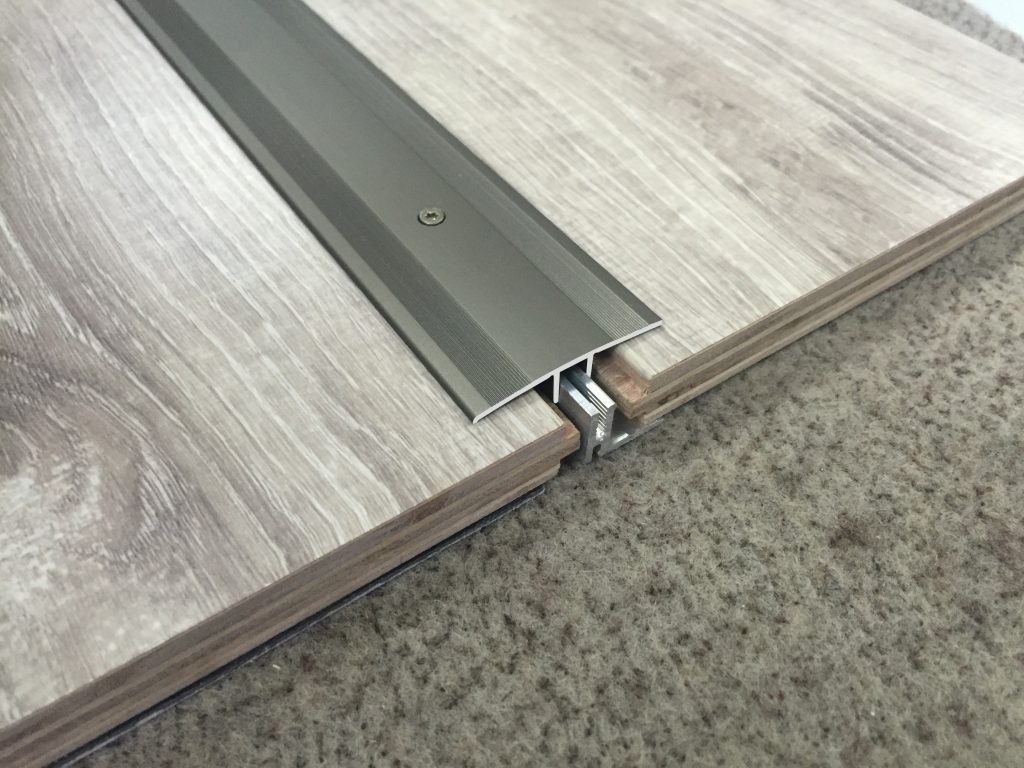

Connection profile is a two-piece anodised aluminium floor trims, which is popular in commercial projects due to the strength of screw fxing the cover in medium to high trafc areas. The profile designs used to join floorcoverings of the same height. The top profile width of DPS 550 and DPS 553 is 45mm. It offers a choice of gauges to accommodate floorcovering thicknesses of 5mm to 21mm. Profiles are available in a matt gold, sand, silver,bronze,champagne anodised finish and are suitable for interior use.
| Brand | King |
| Name | Aluminium DPS Connection Profile |
| Material | Aluminium Alloy |
| Surface | Polishing, Brushing, Matt anodized, Matting, Static power coating, Thermal heat printing etc |
| Colour | Gold, Sand, Silver, Bronze, Champagne |
| Certification | ISO9001, SGS, CE |
| Features |
1.Conntersunk drilled 2.Inclusive base profile 3.Quick & easy to fit 4.Solid aluminium section 5.Various lengths & widths available |
 |

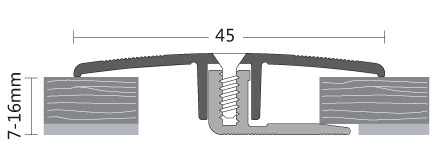

Aluminium DPS System Connection Profile DPS 550 |
| Top profile width 45mm
Suitable for 7-16mm wood, laminate, LVT, SPC floor |
|
 |

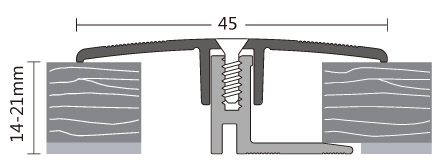

Aluminium DPS System Connection Profile DPS 553 |
| Top profile width 45mm
Suitable for 14-23mm wood, laminate, LVT, SPC floor |
